Fully Automatic Vacuum Distillation Tester ASTM D1160 ±0.1℃ Accuracy
| Lugar de origen | China |
|---|---|
| Nombre de la marca | Shandong Shengtai Instruments Co., Ltd. |
| Certificación | GB/T 9168 ASTM D1160 |
| Número de modelo | SH9168B |
| Cantidad de orden mínima | 1 |
| Detalles de empaquetado | Casilla de madera |
| Tiempo de entrega | 7-15 días de trabajo |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 10000 sets/año |
Éntreme en contacto con gratis las muestras y los vales.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Rango de temperatura | Temperatura ambiente o temperatura ambiente de -40 °C o de 500 °C | Precisión | ± 0,1°C |
|---|---|---|---|
| Tarifa de la destilación | 4 ¢ 5 ml/min | Gama de la detección del volumen | 0 ～ 200 ml |
| Método de enfriamiento | Refrigeración por compresor | Modo de visualización | pantalla táctil industrial integrada del color del grado |
| Resaltar | fully automatic vacuum distillation tester,ASTM D1160 distillation tester,crude oil testing equipment with warranty |
||
Descripción de producto
Fully Automatic Vacuum Distillation Tester ± 0.1℃ Distillation 4 ～ 5mL/Min ASTM D1160
Product Specifications
| Attribute | Value |
|---|---|
| Temp range | -40 ℃ ～ room temp or room temp ～ 500 ℃ |
| Accuracy | ± 0.1℃ |
| Distillation rate | 4 ～ 5mL/min |
| Volume detection range | 0 ～ 200mL |
| Cooling method | Compressor cooling |
| Display mode | Embedded industrial grade color touch screen |
Product Description

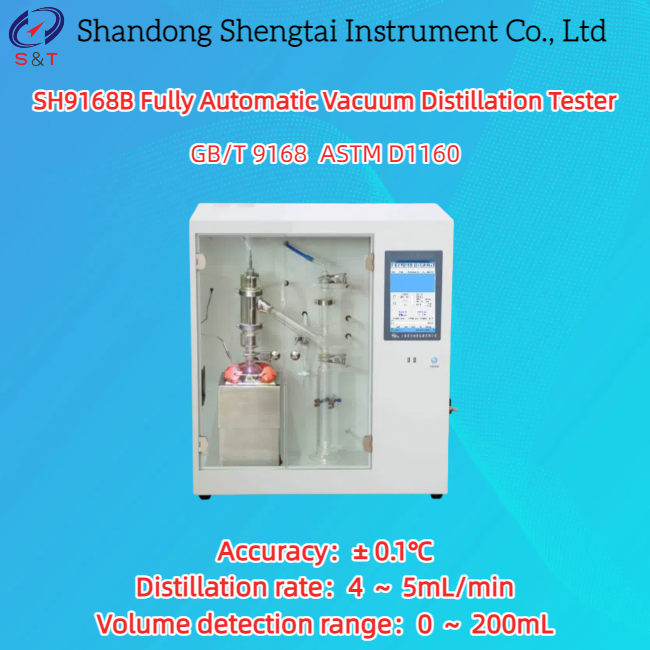

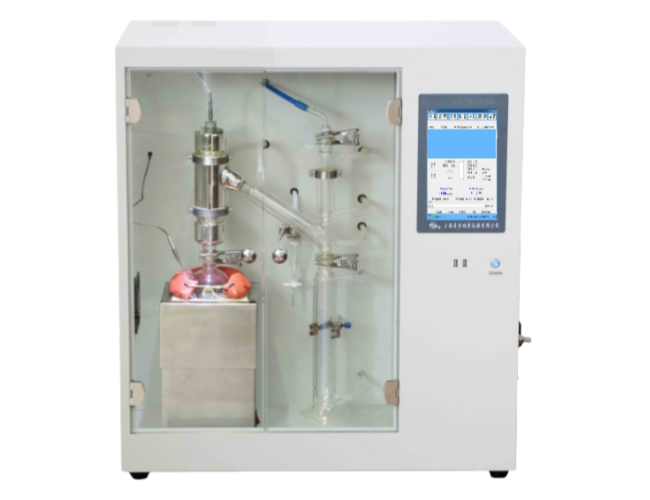

SH9168B Fully Automatic Vacuum Distillation Tester
The SH9168B automatic vacuum distillation analyzer is a specialized testing instrument designed and manufactured in accordance with the Chinese standards GB/T 9168 and ASTM D1160.
This instrument measures the boiling point range of petroleum products that can be partially or completely evaporated. It is a fully automatic vacuum distillation analyzer with heating and cooling devices, equipped with an imported liquid level sensor to automatically track the liquid level.
Performance Characteristics
- Fully automated temperature control, liquid level tracking, temperature recording, and printing functions
- Built-in micro thermal printer for automatic result reporting
- Standard-compliant testing process with reliable data and excellent repeatability
- Imported infrared liquid level detection unaffected by ambient light
- Accurate volume measurement
Technical Parameters
- Display mode: Embedded industrial grade color touch screen
- Refrigeration method: German imported compressor refrigeration
- Temp range: -40 ℃ ～ room temp or room temp ～ 500 ℃ accuracy ± 0.1℃
- Heating method: Electric heating unit, maximum heating power of 800 W
- Temperature sensor: Pt100 glass probe imported from Germany
- Cooling method: Compressor cooling
- Distillation rate: 4 ～ 5mL/min
- Volume detection range: 0 ～ 200mL
- Working power supply: AC220V 50Hz
- Packaging size: 780 * 550 * 650mm
- Weight: 65kg
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance
- Brand new instruments meeting quality standards with manufacturer's certificate
- Materials and components meet specified technical requirements
- One-year overall quality assurance (excluding normal wear and tear)
- Free maintenance for quality issues during warranty period
- Lifetime discounted parts supply and maintenance services
- Post-warranty maintenance available at cost
Packaging and Delivery
- Standard wooden or cardboard box packaging
- Internal packaging: Elastic pearl cotton with hardwood board and strong bandage corner protection
Packing List
| Number | Name | Quantity | Unit |
|---|---|---|---|
| 1 | Host | 1 | Unit |
| 2 | Sensor | 3 | Piece |
| 3 | Vacuum pump 4L/S | 1 | Unit |
| 4 | Vacuum tube | 1.5 | Metre |
| 5 | Vacuum gauge | 1 | Set |
| 6 | Vacuum distillation flask | 1 | Piece |
| 7 | Vacuum jacketed distillation column assembly | 1 | Set |
| 8 | Receiver | 1 | Piece |
| 9 | Temperature gauge -2～400 ℃ | 1 | Piece |
| 10 | Silicone tube with a diameter of 6 * 9 | 2 | Metre |
| 11 | Cylinder connection | 1 | Piece |
| 12 | Certificate of conformity | 1 | Copy |
| 13 | Instructions | 1 | Copy |
