29kg Insulation Oil Dielectric Strength Tester 2.5mm Electrode Gap ASTM D877

Place of Origin CHINA
Nombre de la marca Shandong Shengtai Instrument Co., Ltd
Certificación GB/T507、ASTM D877、DIN 57370、JIS K2101、IP 120
Model Number SH125B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Booster capacity 1.5 kVA Pressure rise speed 2.0 kV/s,2.5 kV/s,3.0 kV/s,3.5 kV/s Four gears for arbitrary adjustment
Output voltage 0~80 kV Power distortion rate <1%
Instrument size 409*393*388 mm Weight 29 kg
Resaltar

29kg insulation oil tester

,

dielectric strength tester ASTM D877

,

transformer oil testing equipment 2.5mm electrode

Deja un mensaje
Descripción de producto

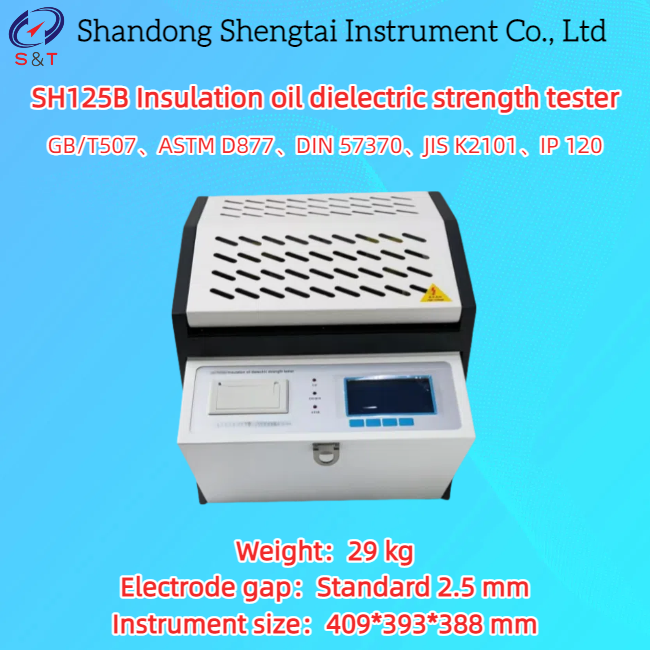

SH125B Insulation oil dielectric strength tester

SH125B Oil Pressure Resistance Tester(insulating oil node strength tester)is one of the routine tests for electrical performance of oil immersed high voltage electrical equipment,In accordance with the provisionsrevised by the Ministry of Electric Power,it coplise with GB/T507-2002,Developed dielectric strength tester for insulating oil,The product is a dry-type aluminum alloy housin,With The advantages of light weight,be easy to carry about,applicable to power factor and user's on-site use,Compared with similar products,SH125B has the advantages of easy operation, high efficiency and accurate measurement,It is an ideal test instrument for test personnel.

Standard: GB/T507,ASTM D877,DIN 57370,JIS K2101,IP 120

Technical Performance and Parameters

● The instrument is controlled by large-capacity SCM,stable and reliable operation;

●The instrument is equipped with a wide range watchdog circuit to prevent system crashes;

● Multiple operation options,The instrument program has two national standard methods (GB1986 and GB2002) and customized operation,It can adapt to various choices of different users;

● The instrument oil cup is made of a special type of glass and poured into shape in one go,eliminates oil leakage and other interference;

● The unique high-voltage sampling design of the instrument allows the test values to directly enter the A/D converter,avoids errors in analog circuits,makes measurements more accurate;

● The instrument has functions such as overcurrent, overvoltage, and short-circuit protection inside,and it has extremely strong anti-interference capability,good electromagnetic compatibility;

● Booster capacity: 1.5 kVA

● Pressure rise speed: 2.0 kV/s,2.5 kV/s,3.0 kV/s,3.5 kV/s Four gears for arbitrary adjustment

● Output voltage: 0~80 kV

● Power distortion rate: <1%

● Display mode: Large screen LCD Chinese character display

● Electrode gap: Standard 2.5 mm

● Instrument size: 409*393*388 mm

● Weight: 29 kg

Booster capacity 1.5 kVA
Pressure rise speed 2.0 kV/s,2.5 kV/s,3.0 kV/s,3.5 kV/s Four gears for arbitrary adjustment
Output voltage 0~80 kV
Power distortion rate <1%
Display mode Large screen LCD Chinese character display
Electrode gap Standard 2.5 mm
Instrument size 409*393*388 mm
Weight 29 kg

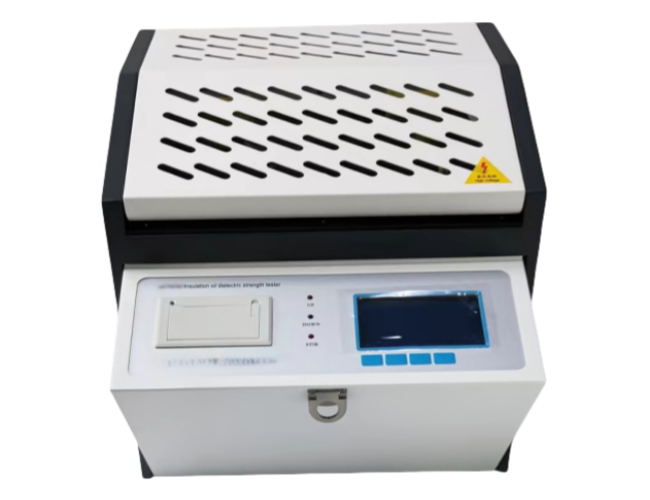

29kg Insulation Oil Dielectric Strength Tester 2.5mm Electrode Gap ASTM D877 0

P.S.: Instrument appearance picture and dimension, volume and weight,FOR INFORMATION ONLY,If the instrument is updated, there may be slight changes without prior notice.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instrument materials provided are brand new, comply with national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period.Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

-----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Special oil cup 1 Set
3 Power cord 1 Copy
4 Instructions 1 Copy
5 Packing list 1 Copy
6 Certificate warranty card 1 Copy
