Automatic Smoke Point Tester RT ～ 400℃ PT100 Temp Sensor GB/T20795-2006
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | Shandong Shengtai Instrument Co.,Ltd |
| Certificación | GB/T20795-2006 |
| Número de modelo | ST123BS |
| Cantidad de orden mínima | 1 |
| Detalles de empaquetado | Caja de madera |
| Tiempo de entrega | 7-15 días de trabajo |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 10000 juegos/año |
Éntreme en contacto con gratis las muestras y los vales.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Pantalla de pantalla táctil | Pantalla de pantalla táctil de 7 pulgadas | Método de calentamiento | Calefacción de baño de metal |
|---|---|---|---|
| Rango de medición de temperatura | Temperatura ambiente ~ 400 ℃ | Exactitud | 0.1 ℃ |
| Temperatura ambiente | 10~40℃ | Tasa de calefacción | corresponda con GB/T20759 |
| Método de almacenamiento | Los resultados experimentales pueden almacenar 1000sets de datos históricos para una consulta fácil | Resultado de salida | También equipado con función de salida de disco U, salida a terminal de PC para almacenamiento a lar |
| Resaltar | automatic smoke point tester,smoke point tester with PT100 sensor,food testing instrument with GB/T20795-2006 |
||
Descripción de producto

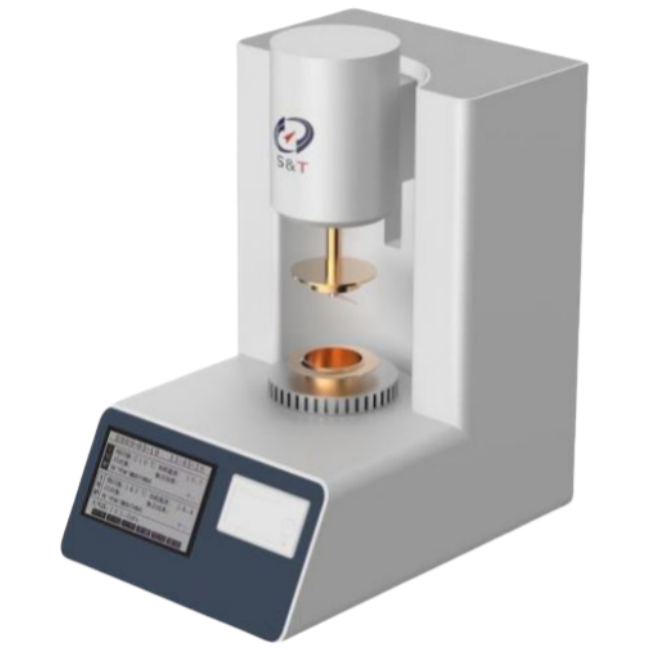

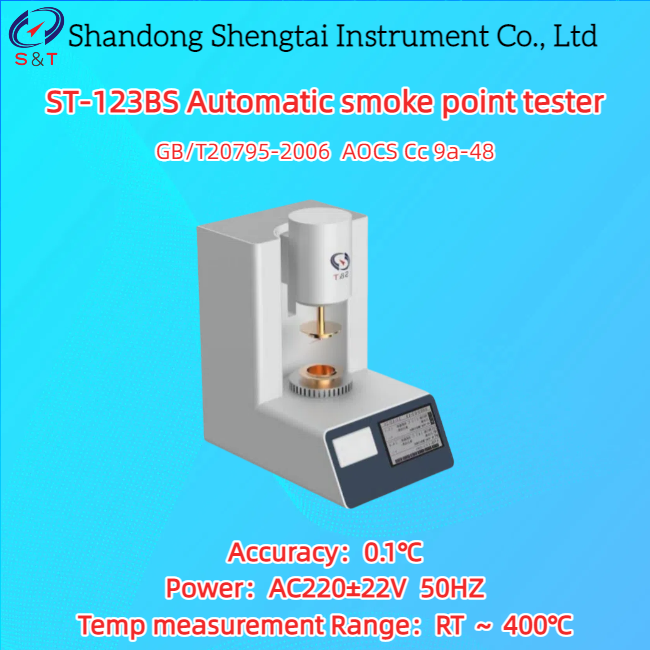

ST-123BS Automatic smoke point tester
ST-123BS Automatic smoke point tester is based on the national standards GB/T20795-2006 " vegetable oil smoking point tester Determination" and AOCS Cc 9a-48 .This instrument adopts LCD screen to display .It can preset smoke point temperature and sample mark number. It has menu that can prompt and guide. It adopts simulation tracking to display the function curve of temperature rising and test time It has the functions of English operation prompt,test date,test time and other parameters. This instrument can automatically detect the smoke point and print test data.The test arm automatically rise up and lower down. Widely used in quality control, import and export inspection, plant oil processing, plant oil storage and transportation, food processing, scientific research, agricultural breeding, the school ,plant oil smoking point testing department and so on.
Edible oil smoke point tester vegetable oil smoking point tester
Automatic Determination
Instrument features:
| Touch screen display | 7-inch touch screen display |
| Heating method | metal bath heating |
| Detection method | Camera photoelectric principle |
| Temp sensor | imported PT100 temp sensor |
| Standard micro-printer automatic measurement automatic thermal printing | |
Major technical parameter:
| Power | AC220±22V 50HZ |
| Temp measurement Range | RT ～ 400℃ |
| Accuracy | 0.1℃ |
| Heating rate | correspond with GB/T20759 |
| Storage method | the experimental results can store 1000sets of historical data for easy query |
| Results output | also equipped with U disk output function, output to PC terminal for long-term storage |
| Output format | The resulting U disk output format is CSV or excel. |
| Data extension | laser printer interface, can link HP1108 laser printer (optional). |
| Data protection | with the date password setting function. |
| Standard printing | a standard micro-printer for automatic measurement and automatic thermal printing |
| Remote upgrade | with TCP network transmission function, can be the software remote upgrade late |
| Ambient temp | 10～40℃ |
| Relative humidity | ≤80% |
| Total power consumption | ≤500W |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
