SAG Jelly Strength Tester Range 0-79.8mm Concave Method Digital Display QB2484-2000

  • SAG Jelly Strength Tester Range 0-79.8mm Concave Method Digital Display QB2484-2000
  • SAG Jelly Strength Tester Range 0-79.8mm Concave Method Digital Display QB2484-2000
Lugar de origen PORCELANA
Nombre de la marca Shandong Shengtai Instrument Co.,Ltd
Certificación QB2484-2000
Número de modelo ST207
Cantidad de orden mínima 1
Detalles de empaquetado Caja de madera
Tiempo de entrega 7-15 días de trabajo
Condiciones de pago T/T
Capacidad de la fuente 10000 sets/año

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Rango de medición 0-79.8 mm Dispositivo de control del tiempo Error de tiempo <±0,1 s Configuración de tiempo libre
Resolución 0.01 mm Altura requerida del vidrio 7.94 ± 0.1 cm (configuración estándar 7.85 cm)
Exactitud de la holgura 0.01 mm soporte Mecanismos duales de elevación y ajuste para ajuste grueso y fino, facilitando la alineación de la v
Resaltar

digital jelly strength tester

,

concave method jelly tester

,

food testing instrument with warranty
Deja un mensaje
Descripción de producto

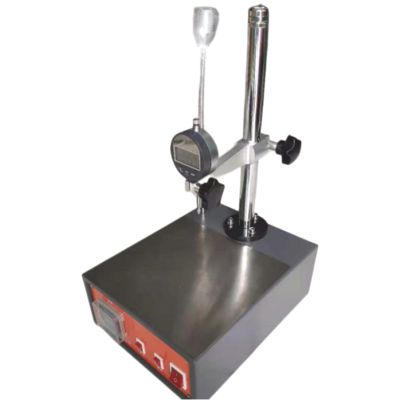

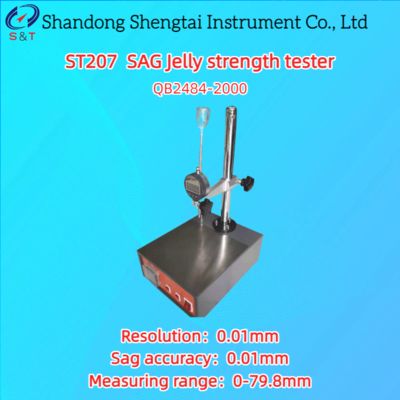

ST207 SAG Jelly strength tester

ST207 jelly strength tester is designed and manufactured according to the requirements specified in the pectin standard QB2484-2000, and is mainly used to measure the strength of jelly. Pectin gel strength tester (SAG)

Main technical features

● Digital display is used to display the depression value, which is intuitive and eye-catching.

● The digital display of the time control device can be adjusted arbitrarily from 0 to 99 minutes.

● With coarse and fine adjustment functions of the lifting frame, it is convenient to adjust and accurate to align the needle.

Main technical parameters

Measuring range 0-79.8mm
Time control device

Time error ＜±0.1s

Free time setting
Resolution 0.01mm
Required height of glass

7.94 ± 0.1cm

(standard configuration 7.85cm)
Sag accuracy 0.01mm
Lifting bracket dual lifting and adjusting mechanisms for coarse and fine adjustment, facilitating the alignment of the standard rod with the plane of the sample

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

SAG Jelly Strength Tester Range 0-79.8mm Concave Method Digital Display QB2484-2000 0

Packing list

No Name Unit Number
1 Instrument host Unit 1
2 Standard Column Piece 1
3 Standard glass Piece 3
4 Fuse 5A(∮5×20) Piece 1
5 Power cord(250V 6A) Root 1
6 Instruction manual Copy 1
7 Factory certificate card Copy 1



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
