Material Physical Property Analyzer 28kg Hardness Tensile Strength 0.01kg ASTM E4

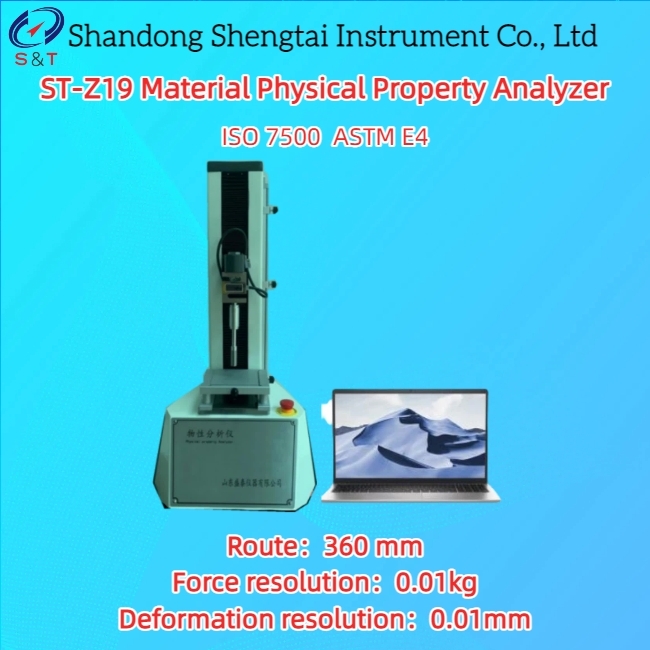

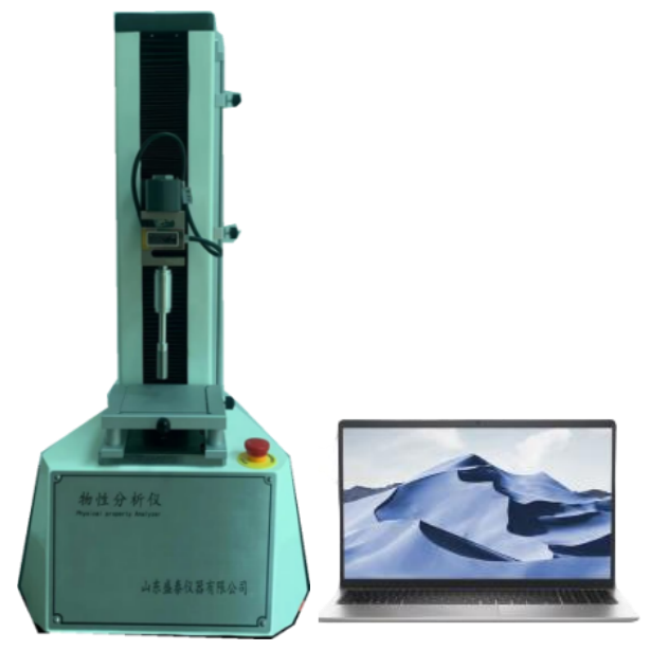

ST-Z19 Material Physical Property Analyzer

ST-Z19 texture analyzer (physical property analyzer), as a sensory physical property analysis instrument, can be used to detect the physical properties of samples in the fields of food, biology, pharmacy and chemical industry, including hardness, elasticity, crispness, chewiness, firmness, ductility, resilience, gel strength and other texture meters (physical property analyzer). ST-Z16 texture instrument is a mechatronic product, adopting modern mechanical design concept and ergonomic design criteria, and using advanced dual-CPU microcomputer processing technology for careful and reasonable design.

ST-Z19 physical property analyzer (texture analyzer) mainly includes texture analyzer host, special software, spare probe and accessories. Its basic structure is generally composed of a mechanical device capable of producing deformation on the sample, a container for holding the sample and a recording system for recording the force, time and deformation rate. The test revolves around distance, time and force to test and analyze the results. The physical property analyzer mainly reflects the texture characteristics related to mechanical properties, and its results have high sensitivity and objectivity. The results can be accurately quantified through the equipped special software to objectively and comprehensively evaluate the objects with quantitative indicators.

Product introduction:

● Test indicators: tenderness, hardness, brittleness, viscosity, elasticity, cohesion, chewability, tensile strength, compressive strength, penetration strength and other physical indicators

● The test process is controlled by an online computer. The test program has been built in and can be called at any time

● It can complete the basic physical property test and analysis of most food samples, such as baked food, dairy products, meat products, fruits and vegetables, grain and oil, gel, leisure processed food, etc

● Achievable test methods include penetration, extrusion, crushing, extrusion, stretching, breaking, etc

● The transmission mechanism adopts ball screw, and the transmission is stable; Imported servo motor is adopted, with low noise and control

● 24-bit high-precision AD converter (resolution up to 1/10000000) and high-precision force sensing element are adopted to ensure the rapidity and accuracy of force data acquisition of the instrument.

● Real-time display of force-time, force-deformation, force-displacement, etc. during the test

● It can be operated on a computer, and the texture analyzer can be controlled by a special software computer, and the experimental data can be directly displayed on the computer interface for automatic storage and printing.

● Standard:ISO 7500 ASTM E4

Product parameters

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

List of physical property analyzer (texture analyzer with TPA mode)

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
