Aniline Point Tester RT-200℃ Heave Oli Light Oil 12V Lighting ASTM D611

  • Aniline Point Tester RT-200℃ Heave Oli Light Oil 12V Lighting ASTM D611
  • Aniline Point Tester RT-200℃ Heave Oli Light Oil 12V Lighting ASTM D611
Lugar de origen PORCELANA
Nombre de la marca Shandong Shengtai Instrument Co.,Ltd
Certificación ASTM D611 GB/T 262
Número de modelo SD262A
Cantidad de orden mínima 1
Detalles de empaquetado Caja de madera
Tiempo de entrega 7-15 días de trabajo
Condiciones de pago T/T
Capacidad de la fuente 10000 sets/año

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Método de calentamiento Tubo calefactor eléctrico de acero inoxidable (integrado) Potencia de calefacción 2kw
Rango de control de temperatura Temperatura ambiente ~ 200 ℃ Precisión del control de temperatura ≤0.5℃
Potencia de iluminación 12V Fuente de alimentación AC220V ± 10% 50Hz
Resaltar

Aniline Point Tester ASTM D611

,

Heavy Oil Aniline Tester 12V

,

Light Oil Testing Equipment RT-200℃
Deja un mensaje
Descripción de producto

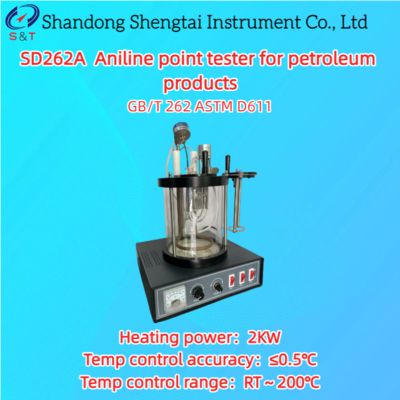

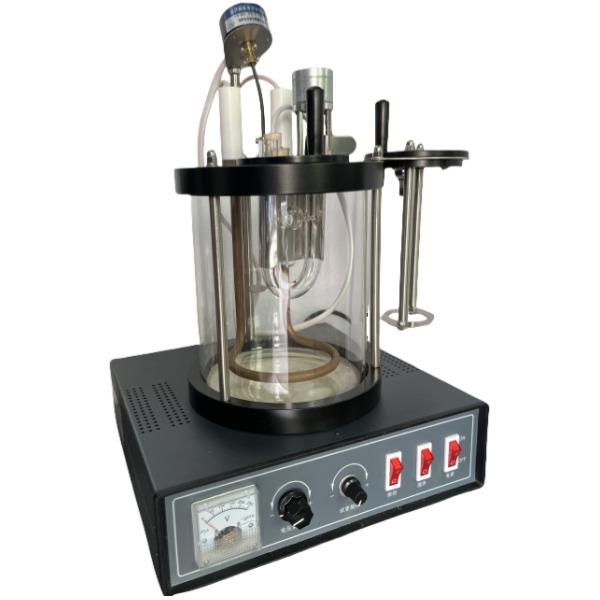

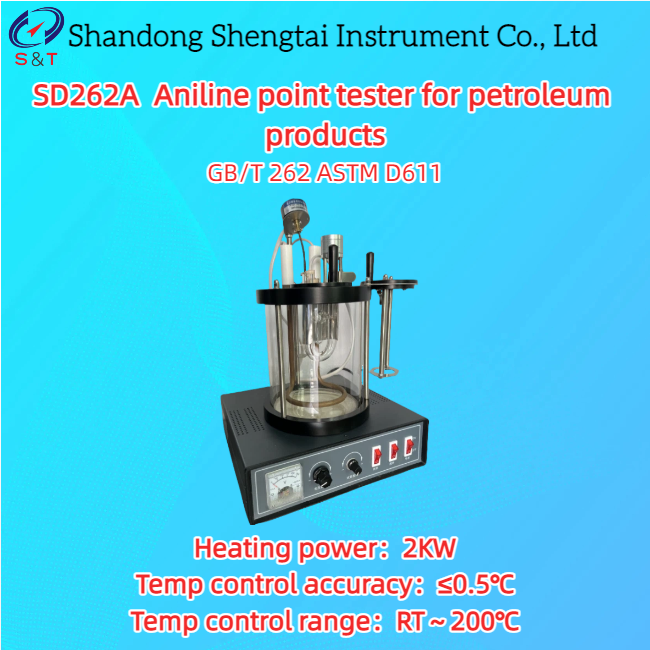

SD262A Aniline point tester for petroleum products

SD262A Aniline point tester for petroleum products is designed and manufactured according to the requirements stipulated in the national standard GB/T262 Aniline point tester for petroleum products. It is suitable for the determination of aniline point for light colored petroleum products and dark colored petroleum products.

The lowest temperature required for petroleum products to dissolve into a single liquid phase with an equal volume of aniline is called the aniline point.

Standard: GB/T 262 ASTM D611

Main technical features: aniline point meter oil analysis

● The design of the instrument fully conforms to the requirements of GB/ T262 standard for the aniline point test of dark petroleum products and light petroleum products.

● The instrument can measure the aniline point of heavy oil (dark petroleum products) and light oil (light petroleum products).

● Temperature control system adopts digital display PID temperature control instrument, high temperature control precision, stable and reliable performance, easy to operate.

Technical parameters

Heating method Stainless steel electric heating tube(built-in)
Power supply AC220V±10% 50HZ
Motor power 6W
Heating power 2KW
Temp control range RT～200℃
Temp control accuracy ≤0.5℃
Lighting power 12V
Instrument size 280*260*440 mm
Instrument weight 5.45 kg
Package size 370*360*500 mm
Package weight 13kg wooden crate

Note:The appearance photos, dimension, volume and weight of the instrument are for reference only.If there are any updates to the instrument, they may be slight changes without prior notice.

Aniline Point Tester RT-200℃ Heave Oli Light Oil 12V Lighting ASTM D611 0

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packing list

S/N Name Unit Quantity note
1 Host Unit 1
2

25～105℃ Thermometer

scale division 0.2℃

 Piece 1
3

90～170℃ Thermometer

scale division 0.2℃

 Piece 1
4 U type tube (For heavy oil) Piece 1
5 Metal shield (For heavy oil) Piece 1
6 Illumination bulb assembly Piece 1 For heavy oil
7 Seat 2 for test device (For heavy oil) Piece 1 With stirring motor assembly
8 Glass test tube Piece 2 Φ25(For light oil)
9 Glass casing tube Piece 1 Φ40(For light oil)
10 Cork 1# (For light oil) Piece 1 Hole of Φ25
11 Test tube plug (for light oil testing) Piece 1 Central hole Φ 9 and mixing rod hole
12 Stirring rod (For light oil) Piece 1
13 Seat 1 for testing device Piece 1 (For light oil)
