Benzene Product Evaporation Residue Tester RT ~ 150℃ PT100 Sensor 1.5KW GB/T3209
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | Shandong Shengtai Instrument Co.,Ltd |
| Certificación | GB/T3209 |
| Número de modelo | SH32009 |
| Cantidad de orden mínima | 1 |
| Detalles de empaquetado | caja de madera |
| Tiempo de entrega | 7 - 15 días de trabajo |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 10000 juegos/año |
Éntreme en contacto con gratis las muestras y los vales.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
x| Potencia de calefacción | calentador eléctrico calefacción | Rango de control de temperatura | Temperatura ambiente ~ 150 ℃ |
|---|---|---|---|
| Precisión del control de temperatura | ± 1 ℃ | Sensor de temperatura | Resistencia industrial de platino PT100 |
| Evaporador sellado | Compuesto por una tapa del evaporador y un chasis del evaporador. | Tasa de máquina completa | 1,5 KW |
| Resaltar | benzene evaporation residue tester,lube oil testing equipment with PT100 sensor,GB/T3209 residue tester 1.5KW |
||

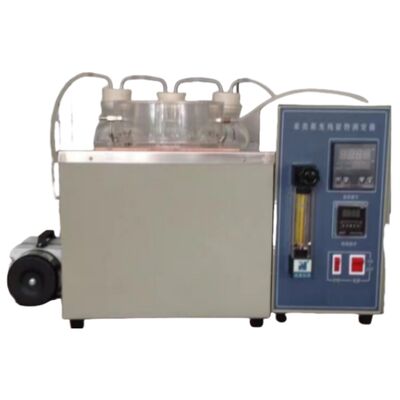

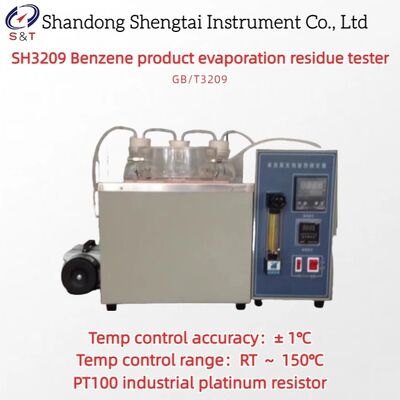

SH3209 Benzene product evaporation residue tester
The SH3209 Benzene Product Evaporation Residue Tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T3209 "Determination of Benzene Product Evaporation Residue". It is suitable for the determination of evaporation residue of coking benzene, coking toluene, coking xylene, petroleum benzene, petroleum toluene, and petroleum xylene.
Main technical parameters
| Working power supply | AC220V ± 10% 50Hz |
| Heating power | Electric heater heating |
| Aluminum dish | lat bottomed, with an outer diameter of 80-100mm, 25-30mm, and a weight of approximately 2g |
| Temp control range | RT ~ 150℃ |
| Temp control accuracy | ± 1℃ |
| Temperature sensor | PT100 industrial platinum resistor |
| Flow control | Flow meter ≤ 5L/min |
| Sealed evaporator | composed of an evaporator cover and evaporator chassis |
| Complete machine rate | 1.5KW |
![]()
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
![]()
Package list
| Number | Name | Quantity | Unit | Note |
| 1 | Evaporative residue analyzer host | 1 | Unit | |
| 2 | Aluminum dish | 1 | Piece | high temp resistance |
| 3 | Stainless steel pliers | 1 | Piece | |
| 4 | Standard manual | 1 | Copy | |
| 5 | Certificate of Conformity | 1 | Copy |
