PT100 Sensor Automatic Vacuum Distillation Tester -40℃ ～ RT Or RT ～ 500°C ASTM D1160

  • PT100 Sensor Automatic Vacuum Distillation Tester -40℃ ～ RT Or RT ～ 500°C ASTM D1160
  • PT100 Sensor Automatic Vacuum Distillation Tester -40℃ ～ RT Or RT ～ 500°C ASTM D1160
Lugar de origen Porcelana
Nombre de la marca Shandong Shengtai Instrument Co.,Ltd
Certificación GB/T 9168 ASTM D1160 ISO 6616
Número de modelo SH9168B
Cantidad de orden mínima 1
Detalles de empaquetado caja de madera
Tiempo de entrega 7 - 15 días laborables
Condiciones de pago T/T
Capacidad de la fuente 10000 juegos/año

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Rango de temperatura -40 ℃ ～ temperatura ambiente o temperatura temperatura ～ 500 °C Modo de calefacción unidad de calefacción eléctrica
Método de refrigeración Refrigeración del compresor Tasa de destilación 4 ¢ 5 ml/min
Gama de la detección del volumen 0 ～ 200 ml Tamaño del instrumento 100*60*163cm
Peso del instrumento 65 kg Fuente de alimentación AC220V 50Hz
Resaltar

PT100 sensor vacuum distillation tester

,

automatic lube oil testing equipment

,

ASTM D1160 oil distillation tester
Deja un mensaje
Descripción de producto

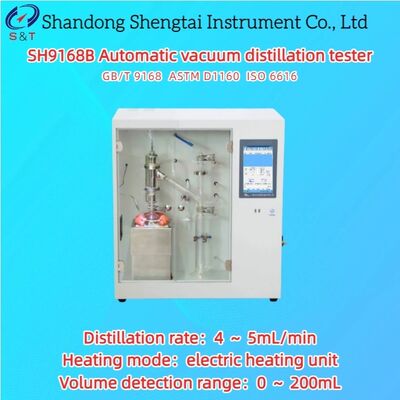

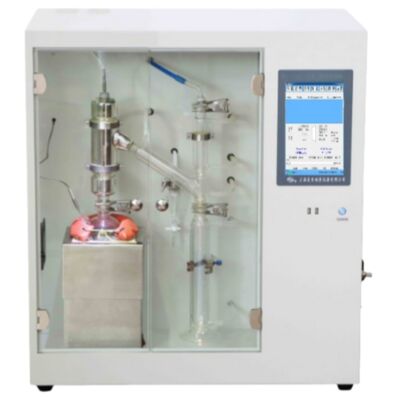

SH9168B Automatic vacuum distillation tester

SH9168B automatic vacuum distillation tester is a special test instrument designed and manufactured according to the standard GB/T 9168 and ASTM D1160 of the People's Republic of China. It can partially or completely evaporate the boiling point range of petroleum products.

This instrument is automatic decompression distillation measuring instrument, with heating device and refrigeration device, equipped with imported liquid level sensor, automatic tracking liquid level, the selection of imported compressor refrigeration, 7 inch touch screen display data, experimental data saved after the completion of the experiment, and can print the experimental results of data.

Product model SH9168B
Product Name Automatic vacuum distillation tester
Manufacturer Shandong Shengtai Instrument Co., Ltd
Testing items Distillation range measurement of petroleum products is carried out in a vacuum environment, and the initial and final distillation points of petroleum products are measured in a vacuum environment.
Standards GB/T 9168 ASTM D1160 ISO 6616
Simple technical features Imported compressor is selected for refrigeration, with a 7-inch touch screen displaying data. After the experiment is completed, the experimental data is saved and the results can be printed

PT100 Sensor Automatic Vacuum Distillation Tester -40℃ ～ RT Or RT ～ 500°C ASTM D1160 0

Performance characteristics:

● The heating and cooling, liquid level tracking, temperature recording, printing and other automatic completion of the measurement process.

● Built-in miniature thermal printer automatically report the test results, one key to complete the determination.

● The testing process complies with the standard provisions and the data is reliable.The method is reliable and reproducible.

● Imported infrared liquid level detection is not affected by indoor light interference, accurate recovery reading.

Technical parameters

Display mode embedded industrial grade color touch screen
Refrigeration method Germany imported compressor refrigeration
Temp range -40℃ ～ RT or RT ～ 500°C
Accuracy ±0.1°C
Heating mode electric heating unit
Maximum heating power 800W
Temp sensor PT100 glass probe imported from Germany
Refrigeration method compressor refrigeration
Distillation rate 4 ～ 5mL/min
Volume detection range 0 ～ 200mL
Working power supply AC220V 50Hz
Instrument size 100*60*163cm
Instrument weight 65kg
Package size 120*78*178cm
Package weight 85kg

Note: The appearance pictures. Dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Sensor 3 Piece
3 Vacuum pump4L/S 1 Set
4 Vacuum tube 1.5 Meter
5 Vacuum gauge 1 Set
6 Vacuum distillation flask 1 Piece
7 Vacuum jacket distillation column assembly 1 Set
8 Receiver 1 Piece
9 Thermometer -2～400℃ 1 Piece
10 Silica gel tubeφ6*9 2 Meter
11 Cylinder connection 1 Piece
12 Certificate 1 Copy
13 Instructions 1 Copy

PT100 Sensor Automatic Vacuum Distillation Tester -40℃ ～ RT Or RT ～ 500°C ASTM D1160 1

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
