Lubrication Grease Evaporation Loss Tester RT～260℃ Timing 0 ～ 100h ASTM D972

  • Lubrication Grease Evaporation Loss Tester RT～260℃ Timing 0 ～ 100h ASTM D972
  • Lubrication Grease Evaporation Loss Tester RT～260℃ Timing 0 ～ 100h ASTM D972
Lugar de origen Porcelana
Nombre de la marca Shandong Shengtai Instrument Co.,Ltd
Certificación GB/T7325 ASTM D972
Número de modelo SY7325
Cantidad de orden mínima 1
Detalles de empaquetado caja de madera
Tiempo de entrega 7 - 15 días laborables
Condiciones de pago T/T
Capacidad de la fuente 10000 juegos/año
Datos del producto
Potencia de entrada 2kW Precisión del control de temperatura ± 0.1 ℃
Rango de control de temperatura TA～260℃ Momento 0~100h
Tamaño del instrumento 430*320*480mm Fuente de alimentación CA220V±10% 50Hz
Resaltar

Lubrication grease evaporation tester

,

Grease evaporation loss tester ASTM D972

,

Lube oil testing equipment with timer
Deja un mensaje
Descripción de producto

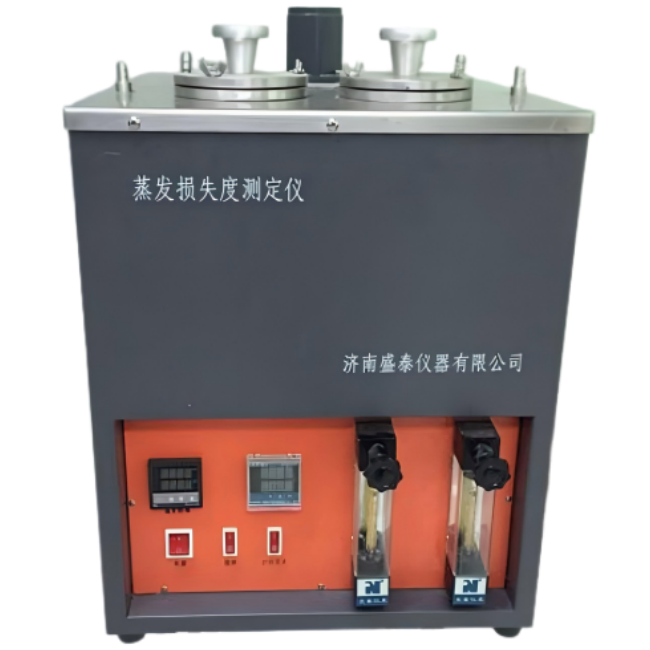

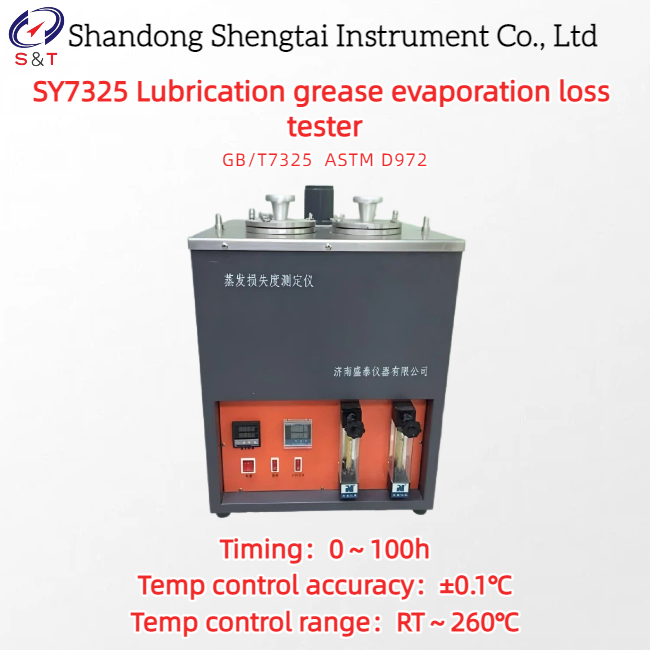

SY7325 Lubrication grease evaporation loss tester

Standard: GB/T7325 ASTM D972

SY7325 lubricating oil and grease evaporation loss tester is designed and manufactured according to GB/T7325 "lubricating oil and grease evaporation loss determination method" and ASTM D972 .

It is suitable for measuring the evaporation loss of lubricating oil or grease at any temperature of 99 ~ 150℃.

Product features

It is composed of bath, temperature control meter, air pump, flow meter, temperature control circuit and so on.

An air pump and a flowmeter are used to inject air into the sample in the evaporation test device in the constant temperature bath at a quantitative flow rate. After a specified time, the evaporation loss of the sample is measured.

Technical indicators

Working power supply AC220V±10% 50Hz
Input power 2KW
Temp control accuracy ±0.1℃
Temp control range RT～260℃
Timing 0～100h
Mixing motor 25W
Instrument size 430*320*480mm
Instrument weight 20kg
Package size 541*445*727mm
Package weight 38kg

Lubrication Grease Evaporation Loss Tester RT～260℃ Timing 0 ～ 100h ASTM D972 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Power cord 1 Piece
3 Evaporating pan 2 Groups
4 Test dish 2 Groups
5 Air filter 1 Piece
6 Air pump 1 Piece
7 Fuse wire 1 Piece 5A or 20A
8 specification 1 Copy



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Lubrication Grease Evaporation Loss Tester RT～260℃ Timing 0 ～ 100h ASTM D972 1

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
