ISO 2592 Automatic Cleveland Open Cup Flash Point Fire Point Tester RT ～ 400℃ SH106BR

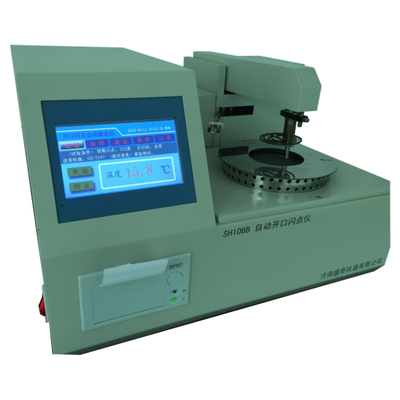

SH106BR Automatic open flash point & fire point tester

The SH106BR fully automatic open flash point and fire point tester is designed and manufactured in accordance with the requirements specified in the Chinese national standard GB/T 3536 "Determination of Flash Point and Fire Point of Petroleum Products (Cleveland Open Cup Method)" (ASTM D92), GB/T 267-1988, and ASTM D92 "Determination of Flash Point and Fire Point of Petroleum Products (Open Cup Method)". It also complies with the "Safety Inspection and Testing Specifications for Products in Use in Coal Mines—Air Compressors" (MT/T 1203-2023) for open flash point testing of compressor lubricating oil.

The open flash point tester is commonly used for lubricating oils and heavy petroleum products, as the vapor formed by heating these products continuously diffuses into the surrounding air, resulting in higher measured flash points. For most lubricating oils and heavy oils, especially when used in non-sealed machinery or at low temperatures, even trace amounts of light hydrocarbons will evaporate during use, posing no risk of ignition or explosion. Therefore, these products are typically tested using the open flash point method.

Instrument features

● This instrument adopts a color LCD large screen display, a fully Chinese human-machine dialogue interface, an unmarked keyboard, and has prompt menu and guided input functions for parameters such as temperature, sample number, atmospheric pressure, and test date that can be preset.

● Automatically calibrate the impact of atmospheric pressure on the experiment and calculate the correction value.

● Differential detection, automatic correction of system deviation.

● Scanning, detection, and printing data are automatically completed, and the test arm is automatically raised and lowered.

● Electronic ignition, forced air cooling.

● Can automatically ignite without the need for a gas source, improving the safety of the test.

Main technical indexes and parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
