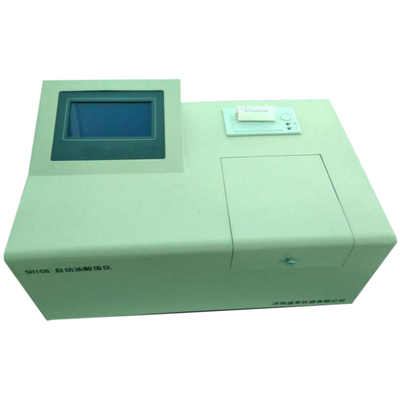

ASTM D974 Automatic Transformer Oil Acid Value Analyzer BTB Method 1 - 3 Sample

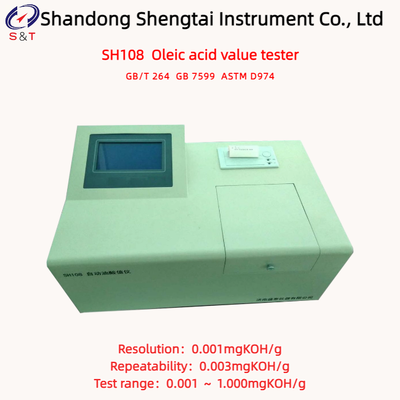

SH108 Oleic acid value tester

The SH108 automatic oleic acid analyzer complies with the requirements specified in the Chinese standards GB/T 264 "Determination of Acid Value of Petroleum Products" and GB 7599 "Determination of Oleic Acid Value of Transformer Oil and Steam Turbine in Operation (BTB Method)". The instrument adopts a blue LCD large screen display, Chinese menu, and unmarked buttons. ASTM D974

Microcomputer automatic measurement, automatic printing, and testing process achieve microcomputer automation, with intuitive and simple operation. Using magnetic stirring, no noise, safe and reliable, compact in size. It can meet the needs of oil refineries, power plants, and research institutions, and is one of the essential instruments for oil analysis and quality inspection.

Performance characteristics

● Using the principle of titration and neutralization method, under the control of the microcomputer automatically complete liquid injection, titration, mixing, determination of neutralization and titration end point, LCD screen display the measurement results, and automatically print the measurement results.The measurement process takes seven minutes.

● Special reagent bottles are used to hold the extraction liquid and neutralizing liquid, and the reagent is isolated from the air during use to avoid the influence of volatilization and carbon dioxide in the atmosphere. At the same time also play a role in protecting the operator.

● Automatic acid value tester can choose a test of 1 ～ 3 oil samples.

Technical indicators

Required consumables: The instrument itself comes with a set of reagents, which can be purchased or prepared by oneself after use.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
