Full-Auto Four-Point Kinematic Viscosity Determiner RT ～ 100℃ PT100 Sensor ASTM D445

  • Full-Auto Four-Point Kinematic Viscosity Determiner RT ～ 100℃ PT100 Sensor ASTM D445
  • Full-Auto Four-Point Kinematic Viscosity Determiner RT ～ 100℃ PT100 Sensor ASTM D445
Lugar de origen Porcelana
Nombre de la marca Shandong Shengtai Instrument Co., Ltd
Certificación GB/T 11137 GB/T 265 SY 2409 ASTM D445
Número de modelo Se aplicará el código SH112HL.
Cantidad de orden mínima 1
Detalles de empaquetado caja de madera
Tiempo de entrega 7 - 15 días laborables
Condiciones de pago T/T
Capacidad de la fuente 10000 juegos/año
Datos del producto
Rango de medición de temperatura Temperatura ambiente ~ 100 ℃ Precisión de visualización 0.01 ℃
Modo de visualización Pantalla táctil de inducción del cuerpo humano. Capacidad de la bañera 14L
Fuente de alimentación operativa CA220V±10% 50Hz Impresora Equipado con una micro impresora
Resaltar

Full-Auto kinematic viscosity determiner

,

Four-point viscosity tester ASTM D445

,

Lube oil testing equipment PT100 sensor
Deja un mensaje
Descripción de producto

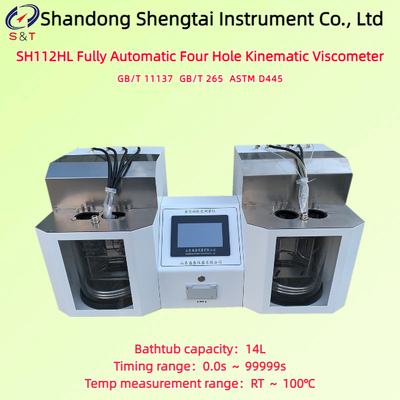

SH112HL Fully Automatic Four Hole Kinematic Viscometer

Standard: GB/T 11137 GB/T 265 SY 2409 ASTM D445

The SH112HL Fully Automatic Four-Point Kinematic Viscosity Determiner is designed and manufactured in accordance with the requirements specified in the Chinese National Standard GB/T 11137 "Kinematic Viscosity Method for Dark Petroleum Products" and the SY 2409 Standard for Kinematic Viscosity Determination of Dark Petroleum Products. It is suitable for measuring dark petroleum products and heavy oil, while also complying with GB/T 265 and the Ubbelohde viscosity determination method.

Kinematic viscosity: At a constant temperature, it is determined by measuring the time it takes for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity. The product of the capillary constant of the viscometer and the flow time represents the kinematic viscosity of the liquid at that temperature

Technical Performance Parameters:

Temp measurement range RT ～ 100℃
Display accuracy 0.01℃
Display mode Human body induction touchscreen
Operation Process Fully automated from sample placement, constant temperature, testing, calculation, viscosity tube cleaning, drying, to report printing
Viscosity Tube Clamp Made of all 304 stainless steel, featuring a high and low-temperature resistant graphite sliding bearing assembly
Bathtub capacity 14L
Number of test holes 2 holes on each side, allowing asynchronous measurement of two types of samples simultaneously. Double-layer insulation; auxiliary heating automatic
Temp Setting Adjustable in either left or right bathtub
Timing range 0.0s ～ 99999s
Detection method Pt100 stainless steel probe with built-in temperature compensation
Output Results It can also be equipped with a USB output function to transfer data to a PC for long-term storage
Printer Equipped with a micro printer
Total power consumption no more than 2000W
Operating power supply AC220V±10% 50Hz
Instrument dimensions 850*380*550mm
Instrument weight 38kg

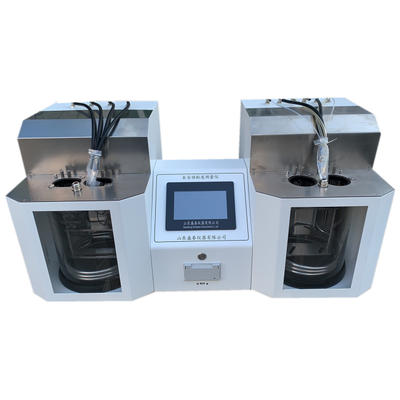

Full-Auto Four-Point Kinematic Viscosity Determiner RT ～ 100℃ PT100 Sensor ASTM D445 0

● Equipped with an LED soft light, providing even fill lighting for easy observation.

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Updates to the instrument may result in minor changes, and no further notice will be provided.



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Full-Auto Four-Point Kinematic Viscosity Determiner RT ～ 100℃ PT100 Sensor ASTM D445 1
