Lubricating Grease Leakage Tester Metal bath heating 660r/min ± 30r/min ASTM D1263

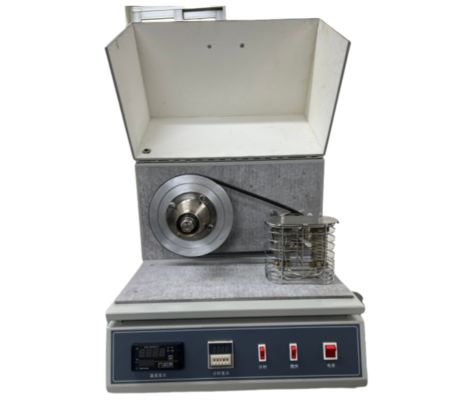

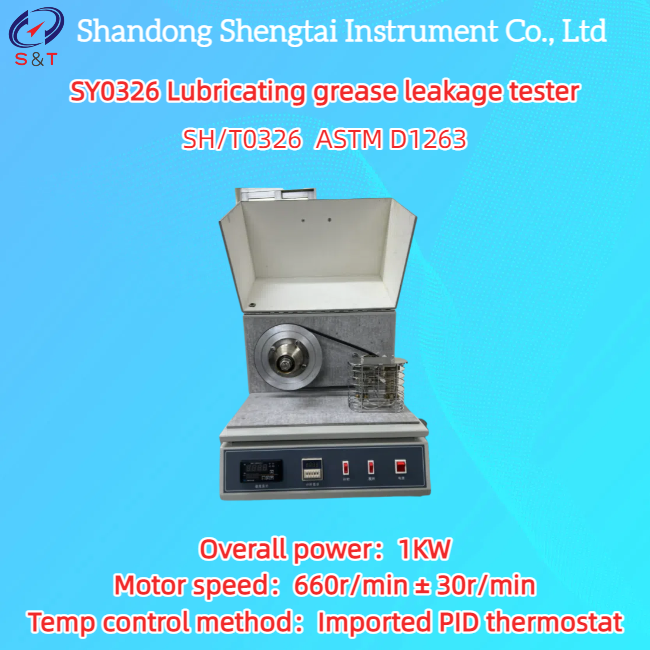

SY0326 Lubricating grease leakage tester

The SY0326 lubricant leakage tester is designed and manufactured strictly in accordance with the SH/T0326 standard.

Lubricating grease leakage: This instrument loads the sample into a modified front wheel hub and shaft assembly, allowing the hub and shaft to run for 360 ± 5 minutes under specified conditions. Measure the leakage of lubricating grease or oil, and pay attention to the surface condition of the bearing at the end of the sample. This instrument is suitable for measuring the leakage of automotive wheel bearing grease and can be used to distinguish products with significantly different leakage characteristics.

Performance Characteristics

● The instrument adopts an integrated design, with a timeless appearance and easy operation;

● The unique heat pipe rod insertion casting box type heating system enables rapid heating speed and high temperature control accuracy;

● Imported electric motors rotate with low noise, stable speed, good mechanical performance, and minimal wear;

● The hub and shaft assembly has a compact structure with small end clearance, and all bearings are made of imported components, ensuring reliability and wear resistance;

● Microcomputer temperature controller, digital display, precision ± 0.5 ℃ PT100 sensor;

● Digital timer, record the test time;

● There is a thermometer hole on the shaft assembly;

● Standard motor 660r/min ± 30r/min;

● The total heating power of the two groups is 660W;

● The body is surrounded by insulation cotton for thermal insulation.

Technical Specifications

● Applicable standard: SH/T0326 ASTM D1263

● Heating method: Metal bath heating

● Temperature control range: normal temperature ～ 150 ℃± 0.1 ℃

● Temperature control method: Imported PID thermostat

● Timing method: digital four digit timer

● Timing range: 0.01s ～ 99h99m

● Motor speed: 660r/min ± 30r/min

● Overall power: 1KW

● Working power supply: AC220V 50HZ

● Size: 430mm * 280mm * 380mm

● Weight: 28kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
