Multi-Functional Auto Degassing Oscillator Rt ～ 100℃ Oscillation 275±3t/Min Dl429.4

  • Multi-Functional Auto Degassing Oscillator Rt ～ 100℃ Oscillation 275±3t/Min Dl429.4
  • Multi-Functional Auto Degassing Oscillator Rt ～ 100℃ Oscillation 275±3t/Min Dl429.4
Lugar de origen Porcelana
Nombre de la marca Shandong Shengtai Instrument Co., Ltd.
Certificación GB/T 17623 DL429.4 GB/T 7598 GB/T 259
Número de modelo SH121
Cantidad de orden mínima 1
Detalles de empaquetado caja de madera
Tiempo de entrega 7 - 15 días laborables
Condiciones de pago T/T
Capacidad de la fuente 10000 juegos/año
Datos del producto
rango de temperatura Temperatura ambiente ~ 100 ℃ Precisión del control de temperatura temperatura ambiente ~ 150 ℃, ± 0,2 ℃; 50 ℃ ～ 100 ℃, ± 0,3 ℃
Frecuencia de oscilación 275 ± 3 t/min Amplitud de vibración 35mm
Fuente de alimentación CA 220 V ± 22 V Tamaño del instrumento 500*350*375mm
Resaltar

Auto degassing oscillator 100℃

,

Multi-functional oscillator 275rpm

,

Cone penetration apparatus degassing
Deja un mensaje
Descripción de producto

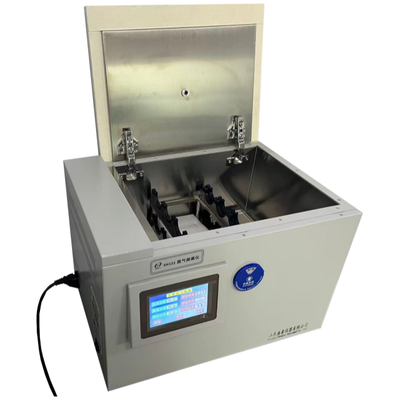

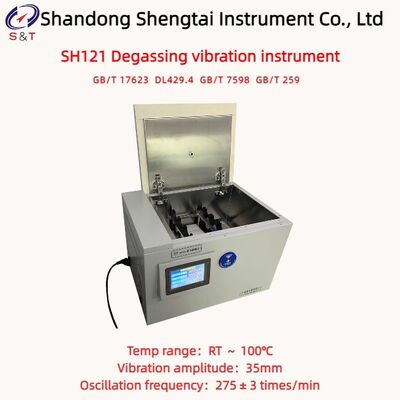

SH121 Degassing vibration instrument

The SH121 automatic degassing shaker complies with the standards GB/T 17623 and DL429.4, and is designed for oscillatory degassing in the determination of dissolved gas components in oil (by gas chromatography) as well as in the determination of water-soluble acids in oil (by colorimetry). It can also be used for constant-temperature, timed oscillation in other physicochemical experiments.

● GB/T 7598-2008: Determination of Water-Soluble Acids in Operating Transformer Oil

● GB/T 17623-2017: Gas Chromatographic Method for Determining the Content of Dissolved Gas Components in Insulating Oil

● GB/T 259-88: Determination of Water-Soluble Acids and Alkalis in Petroleum Products

Key Features

● Features a large blue LCD display with Chinese menus and no physical buttons.

● Features a top-mounted sliding door design for convenient sample handling. It offers advantages such as compact size, low noise level, uniform temperature distribution, and the ability to process eight samples per oscillation cycle.

● The entire workflow is fully automated, significantly reducing labor intensity for staff and enhancing operational efficiency, making it the ideal next-generation solution for laboratories.

Technical parameter

Display Large screen LCD display (240 * 128)
Temp range RT ～ 100℃
Temp control accuracy

RT ～ 150℃, ± 0.2℃;

50℃ ～ 100℃, ± 0.3℃
Oscillation frequency 275 ± 3 t/min
Vibration amplitude 35mm
Method 1 Maintain a constant temperature of 50℃ for 10min, then oscillate for 20min, rest for 10min, and maintain a constant temperature of 50℃
Method 2 After 10 minutes of constant temperature at 2 50℃, oscillate for 5 minutes and maintain a constant temperature of 50℃
Customization Set oscillation and rest time arbitrarily within 0 ～ 99 minutes; Set any temp within 20 ～ 99℃
Sample size for layout 8 * 100ml syringes or 4 * 250ml triangular flasks
Power supply AC220V ± 22V
Instrument size 500 * 350 * 375mm
Net weight of the instrument 31.5kg
Packaging size 580 * 430 * 465mm
Gross weight of packaging 39kg

Multi-Functional Auto Degassing Oscillator Rt ～ 100℃ Oscillation 275±3t/Min Dl429.4 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Oscillating disk 1 Set
3 Power cord 1 Piece
4 Instructions 1 Copy
5 Packing list 1 Copy
6 Certificate warranty card 1 Copy



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Multi-Functional Auto Degassing Oscillator Rt ～ 100℃ Oscillation 275±3t/Min Dl429.4 1
